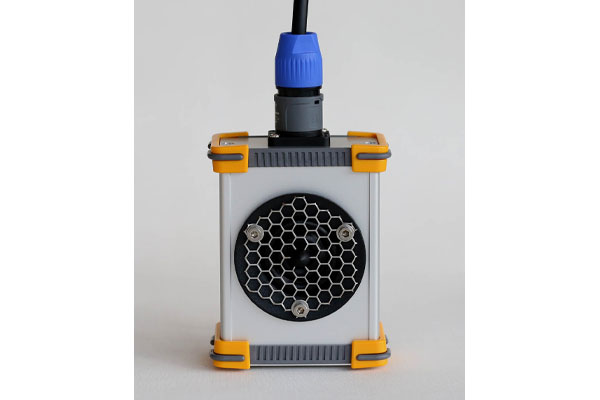

Ultrasonic Dynamic Speaker

Vifa

  • Frequency range (+-12dB): 1 – 120 kHz
  • Impedance : 4 ohm
  • Sensitivity at 50 kHz : 92 dBSPL / 2.83 Vrms / 1 m
  • Max continuous power handling : 10 W (corresponds to a sine signal at 20 Vpp)
  • Max sound pressure level (re 20 μPa) in conjunction with UltaSoundGate Player (operated from 36 VDC) : >98 dBSPL at 1 m distance
  • Effective cone area : 7 cm2
  • Rugged aluminum housing
  • speakON connector
  • Tripod mount 5/8″
  • Physical dimensions (W/H/D) in mm : 90*120*50
  • Weight : 300 g
