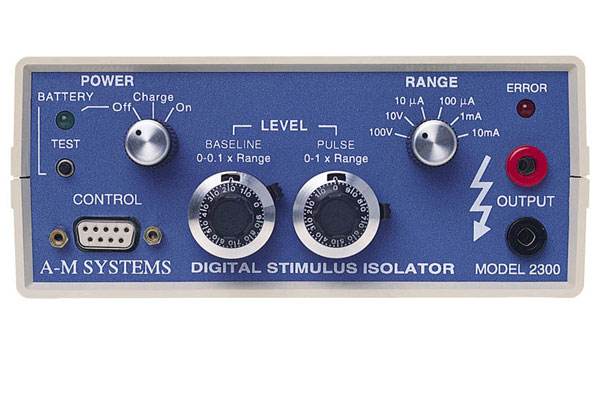

Model 2300 Digital Stimulus Isolator

The Model 2300 Digital Stimulus Isolator provides opto-electrical isolation and amplitude control for square pulses whose timing parameters are generated by your computer. These levels are set by the front-panel ten-turn potentiometers. Scaled according to the Range switch setting, these levels can result in an output up to 50 V or 5 mA.
